PROTEX 5
Single-sided Printed Paper with Natural Latex Adhesive

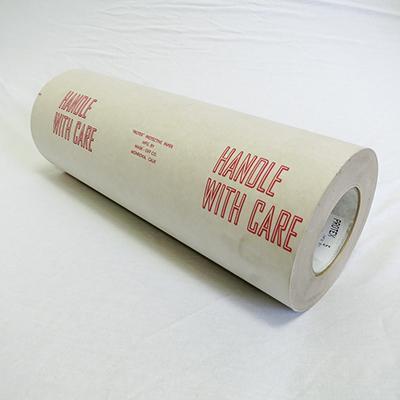

PROTEX 5 Protective Paper is a 4-5 mil latex saturated paper used for protection of bare aluminum, titanium, stainless steel and painted surfaces. Paper is printed in red “SCRATCHES CAUSE REJECTIONS-HANDLE WITH CARE.” The main uses for PROTEX 5 are on exterior aluminum skins in the aircraft industry, as well as electronic cabinetry, to prevent scratches during fabrication. After being applied to the surface it can be routed, drilled, countersunk and riveted. A liner allows the product to be die-cut if desired.
This product is not intended for fly-away applications.
Protex 5 “Handle With Care/Scratches Cause Rejection” Linered and Imprinted Kraft Surface Protection Tape; 60 yards standard roll length. Made in USA
Protex 5 Stocked Sizes:
- 12" x 60 Yards
- 16" x 60 Yards
- 24" x 60 Yards
Specifications Met By Protex 5
Boeing BAC 5034, Type IV, Class I, Grade A, NSN 8135-00-946-2090
Applications
INDUSTRIES: Aerospace
APPLICATION: Surface Protection
APPLICATION DESCRIPTION:
Used on various surfaces to include exterior aluminum skins in the aerospace industry. After applications, tape can be routed, drilled, countersunk and riveted. Used on bare metal, titanium, stainless steel and painted surfaces. Liner allows the product to be die-cut if desired.
APPLICATION NOTES:
Application surface: Metals, Plastics, Glass, Painted Surfaces
Technical Data
Mask-Off Protex
MATERIAL DESCRIPTION:
| ADHESIVE TYPE: | Pressure-Sensitive |
| CONSTRUCTION: | Single Coated |
| LINER: | Flat |
TECHNICAL DATA:
| ADHESIVE LAYER: | Rubber |
| ADHESIVE LAYER DESCRIPTION: | 5 mil Natural Latex |
| BACKING/CARRIER MATERIAL: | Paper |
| ADHESION TO STEEL: | oz/inch width 17-22 (-3/+4) (At time of manufacture) PSTC-1 (Modified) |
| TENSILE STRENGTH: | lbs/inch M.D. 12.7 min |
| ELONGATION: | % M.D. 6.0 min |
| TEMPERATURE OPERATING: | 150° for 1 hour, No heat |
Protex 5 Tech Data Sheet
