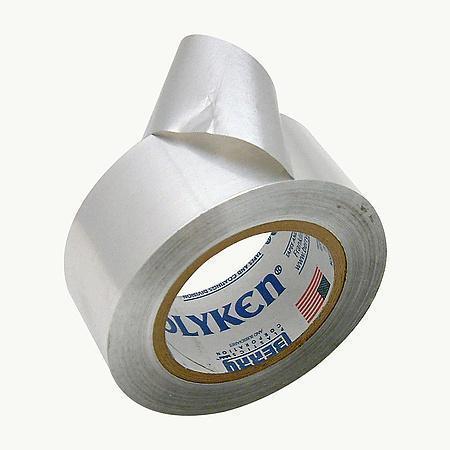

Polyken 345SW
Premium Self-Wound Aluminum Foil Tape
Has many uses in aviation, general industrial and OEM industries. This is a heavy-duty dead soft aluminum foil tape that's used for aircraft masking and sealing applications. UL and FAR certified, it acts as a heat shield to minimize heat transfer and provides an effective barrier to moisture, air and corrosion. Polyken 345SW Premium Self-Wound tape has a smooth, easy unwind, and because there is no release liner, there's less waste. This aluminum foil tape conforms well to contours and irregular surfaces and bonds to most substrates. Its acrylic adhesive coating is resistant to solvents and performs well in high temperatures. The tape can also be cleanly and easily removed from most surfaces, leaving no residue.
Documentation: Factory C of C to SAE AMS-T-23397B and L-T-80B (it also confirms that this tape meets F.A.R. 25.853a).
Product Applications:
Polyken 345SW Premium Aluminum Foil (“Speed”) Tape; 60 yards standard roll length (This tape is the U.S. made direct offset to the 3M 425 Aluminum Foil Tape)
- Masking and sealing in aircraft
- Aerospace speed tape
- Window mask to protect aircraft windshields, canopies and passenger window surfaces from hazing or crazing during paint stripping
- Heavy-duty vapor barrier sealing for sheet metal, flexible and fiberglass duct systems
- Insulation patch, seal and repair
- Composite manufacturing and repair
- Heat shielding and elimination of "hot" spots in industrial maintenance
- Condenser and evaporator fastener in appliance and refrigeration industry
- Masking in paint stripping and electro-plating
- Diversion trough for wash-off of chemicals and paints during painting and stripping
Specifications:
- FAR 25.853(a)
- SAE AMS-T-23397B (supersedes MIL-T-23397A)
- L-T-80B
- Tested in accordance with UL 723
Technical Data:
Polyken 345SW Premium Self-Wound Aluminum Foil Tape
- Adhesive: acrylic
- Carrier/Backing: aluminum foil
- Thickness: 5 mils (carrier, adhesive) 3 mils (carrier)
- Adhesion: 68 ounces per inch (to stainless steel test panel)
- Tensile Strength: 26 pounds per inch (longitudinal)
- Service/Operating Temperature: -40°F to 350°F
- Elongation: 3%
- Certifications: FAR 25.853(a), SAE AMS-T-23397B (supercedes MIL-T-23397A & B), L-T-80B, UL723 listed
- Core: 3" diameter
Polyken 345SW Tech Data Sheet
